Overview

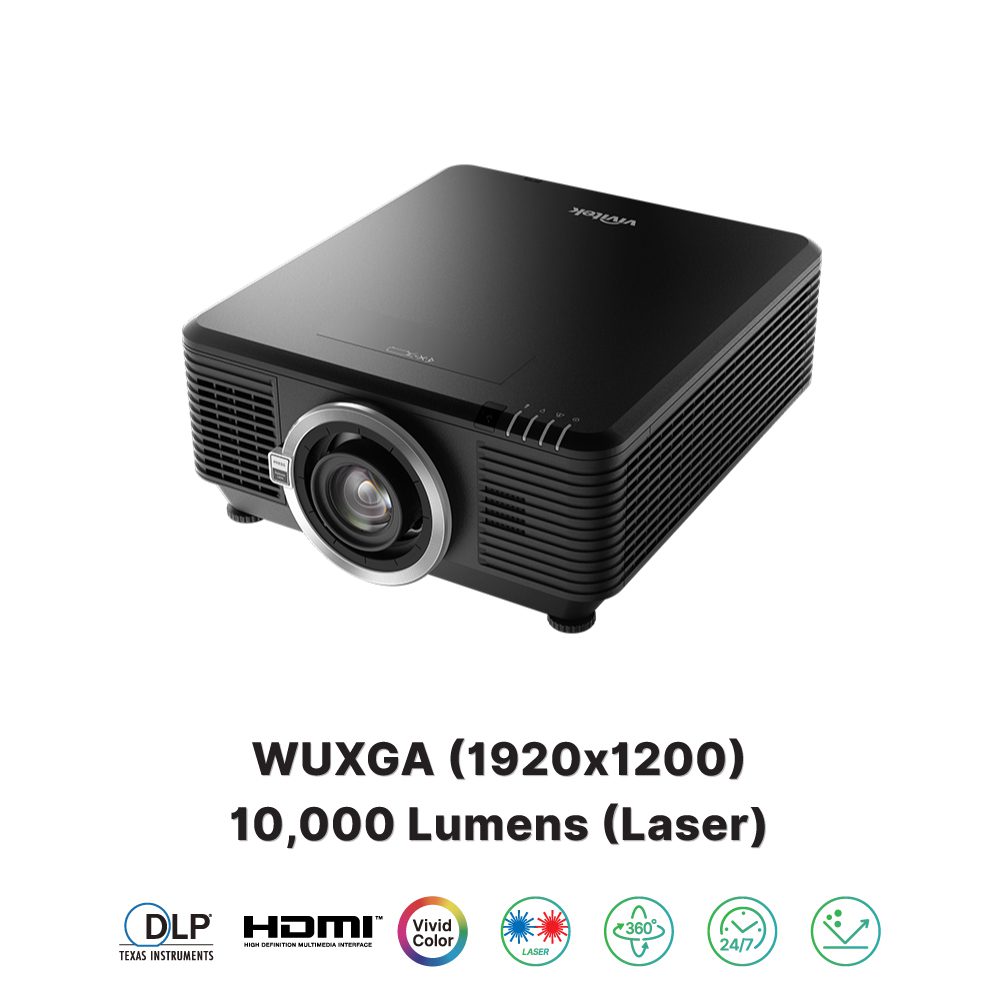

The newly designed DU7299Z is a most efficient WUXGA large venue projector with versatility in applications. This projector offers incredibly brightness up to 10,000 lumens and supports motorized lenses, with lens positioning memory to cater for any installation requirements. Its maintenance-free reliable operation for up to 30,000 hours with constant brightness and color uniformity by the optional IP6X sealed engine design, making this series perfect for large venues, such as auditoriums, lecture halls, sports arenas, and both rental and staging markets.
Brightness and Lowest Power Consumption
With Vivitek’s latest laser technology, DU7299Z features high brightness up to 10,000 lumens with lowest power consumption and a high 3,000,000: 1 contrast ratio to create the most amazing picture performance.

High Efficiency
The DU7299Z series uses the latest laser light source technology to enhance brightness, featuring the lowest power consumption and high efficiency in the market. Compared to previous projectors, this series has saved up to 45% of power consumption.

Optional Motorized Lenses & Lens Shift movement
The previous generation of models used manual lenses, the new DU7299Z supports eight motorized lenses and offer larger Lens Shift movement to enhance installation flexibility.

Lens Position Memory
The DU7299Z comes with powered lens shift (horizontal / vertical) for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (lens shift) for easy setup to ensure perfectly proportioned images.

PJ-Control Tool
Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.

Constant Brightness
With built-in color sensor technology, this series of projectors can automatically adjust the light to maintain constant and stable brightness over a long period of time.

24/7 Operation
Vivitek’s laser light source can be operated for 30,000 hours in “Eco Mode” and is approved for 24/7 operation. It delivers high stability and reliability for commercial applications.

Specifications
| Category | Specification |
|---|---|
| Projection System | 1-Chip DLP™ 0.67 inch |
| Resolution | WUXGA (1920 x 1200) |
| Light Source | Laser |
| Optics | |
| Brightness | 10,000 lm |
| Brightness Uniformity | 90% |
| Contrast Ratio | 1,300:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) |
| Light Source Life | 20,000 hrs (Normal) |
| Lens Type | Optional (D88/D86 Lenses) |
| Zoom Ratio | Base On Lens Spec |
| Lens Throw Ratio | D88 Lenses: 0.38:1 / 0.76:1 / 0.75~0.93:1 / 1.25~1.79:1 / 1.73~2.27:1 / 2.22~3.67:1 / 3.58~5.38:1 / 5.31~8.26:1 D86 Lenses: 0.77~1.1:1 / 1.1~1.3:1 / 1.25~1.6:1 / 1.54~1.93:1 / 1.93~2.9:1 |
| Lens Shift – Horizontal (Full Image Width) | +15% ~ -15% |
| Offset (Full Image Width) | +70% ~ -50% |
| Geometry Adjustment | |
| Keystone Correction | Yes (H/V) |
| Four Corner Adjustment | Yes |
| I/O Terminal | |
| HDMI | 2.0 x2 |
| DisplayPort | N/A |
| SDI | N/A |
| DVI-D | x1 |
| YPbPr | N/A |
| D-Sub | In x1 / Out x1 |
| 3D Sync | In x1 / Out x1 |
| RJ45 | HDBaseT x1, LAN x1 |
| RS-232 | In x1 / Out x1 |
| Wire Remote | In x1 / Out x1 |
| Speaker | 10W x2 |
| USB | Type A (Power Only 5V/1.5A) x1 USB (Service) x1 |
| 12V Trigger (mini Jack) | x1 |
| 5 BNC | x1 |
| Audio | Audio-In (Mini-Jack) x1 Audio-Out (RCA) x1 |
| System | |
| Power Supply | AC 100-240V 50/60Hz |
| Power Consumption ±5% | 575W (Normal Mode) / 510 (Eco) |
| Standby Power | <0.5W (Network Off)/< 2.0W( Network On) |
| Acoustic Noise ±5% | Normal 40dB / Eco 38dB |
| Dimension ±2% | 470 x 517mm x 202 mm |
| Weight ±1kg | 20.6 kg |
| 3D Display | Active |
| 24×7 Operation | Yes |
| Dust Proof*4 | IP6X (Óptico Engine) |
| Operation Oreinetation | 360˚ free installation |
| Operation Environment | Temp. 5~40˚C / Humidity10~85% |
| Storage Environment | Temp. -10~60˚C / Humidity 5~95% |
Projector Lens
| Model | Picture | Type | Projection Distance |
|---|---|---|---|
| D86-0711 | ![]() | Short Throw Zoom | 1 – 4.98m |
| D86-1113 | ![]() | Standard Short Throw | 1 – 9m |
| D86-1216 | ![]() | Semi Short Throw | 1.35 – 8.08m |
| D86-1519 | ![]() | Standard | 2 – 10m |
| D86-1929 | ![]() | Long Throw | 2 – 20m |
| D88-SMLZ01 | ![]() | Semi Long Zoom | 1.9 – 39.46m |
| D88-LOZ101 | ![]() | Long Zoom | 3.08 – 57.84m |
| D88-LOZ201 | ![]() | Long Zoom | 4.57 – 88.81m |
Documentation
Flyer & Specsheet
User Manual
Quick Start Guide
PJ Control tool
