Overview
The DX330 features a high brightness and 30,000:1 contrast ratio to deliver 300″ image even in any bright environment. Compact size, low weight, and quick installation make this series ideal for classrooms and meeting rooms. With top-side cover and energy-saving design, this series is easy to replace lamp and has a long lamp life up to 15,000 hours.
Key Features
DLP Darkchip3 & BrilliantColor Technology
The DX330 supports DLP® and BrilliantColor™ technologies for distinct and vibrant images. The 6-segment (RGBYCW) color wheel not only makes the image more vivid and saturated, but also reproduces color performance.
Bright Images in Any Environment
Packed with up to 4,000 lumens of brightness and a high contrast ratio 30,000: 1, the DX330 provides sharp and bight images in any environment with ambient light.
Potable & Lightweight
Featured under 3kg, the DX330 is potable and easy to carry and install between home and school or office.
Long Lamp Life
With high-efficiency and energy-saving lamp, this series projector has a long life span of up to 15,000 hours in Eco mode to reduce lamp replacement times.
3D Ready

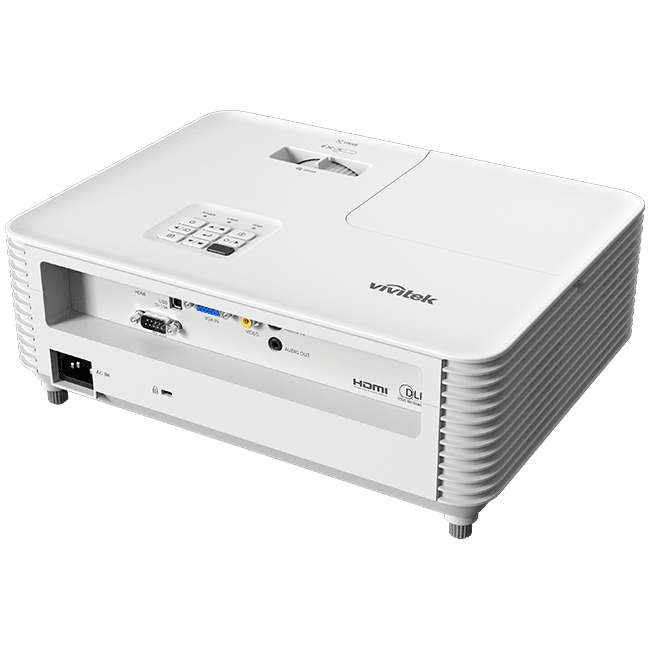

The DX330 features full suite of display connections, including HDMI, composite video, and VGA-in. The HDMI port allows users to project 3D content via DLP Link and Blu-Ray 3D.
Specifications
| Category | Specification |
|---|---|
| Display | |
| Projection System | 1-Chip DLP™ 0.55 inch |
| Resolution | XGA (1024 x 768) |
| Light Source | UHP Lamp |
| Optics | |
| Brightness | 4,000 lm |
| Brightness Uniformity | 80% |
| Contrast Ratio | 15,000:1 (Full On/Off) |
| Light Source Life | 5,000 hrs (Normal) / 6,000 hrs (Eco) / 15,000 hrs (Long Eco) |
| Lens Type | Fixed |
| Zoom Ratio | 1.1x |
| Lens Throw Ratio | 1.96~2.35 : 1 |
| Lens Shift – Horizontal (Full Image Width) | N/A |
| Offset (Full Image Width) | 115% |
| Geometry Adjustment | |
| Keystone Correction | Yes (V) |
| Four Corner Adjustment | N/A |
| I/O Terminal | |
| HDMI | 1.4a x1 |
| D-Sub | In x1 |
| RS-232 | In x1 |
| Speaker | 10W x1 |
| USB | Type A (Power Only 5V/1.5A) x1 |
| Audio | Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1 |
| System | |
| Power Supply | AC 100-240V 50/60Hz |
| Power Consumption ±5% | 240W (Normal) / 200W (Eco) |
| Standby Power | < 0.5W |
| Acoustic Noise ±5% | Normal 31dB / Eco 27dB |
| Dimension ±2% | 313 x 236 x 120 mm |
| Weight ±1kg | 2.6 kg |
| 3D Display | Active / Passive |
| Operation Oreinetation | Up & Down (lamp life not gurantee) |
| Operation Environment | Temp. 5~40˚C / Humidity 10~85% |
| Storage Environment | Temp. -10~60˚C / Humidity 5~95% |
