Overview

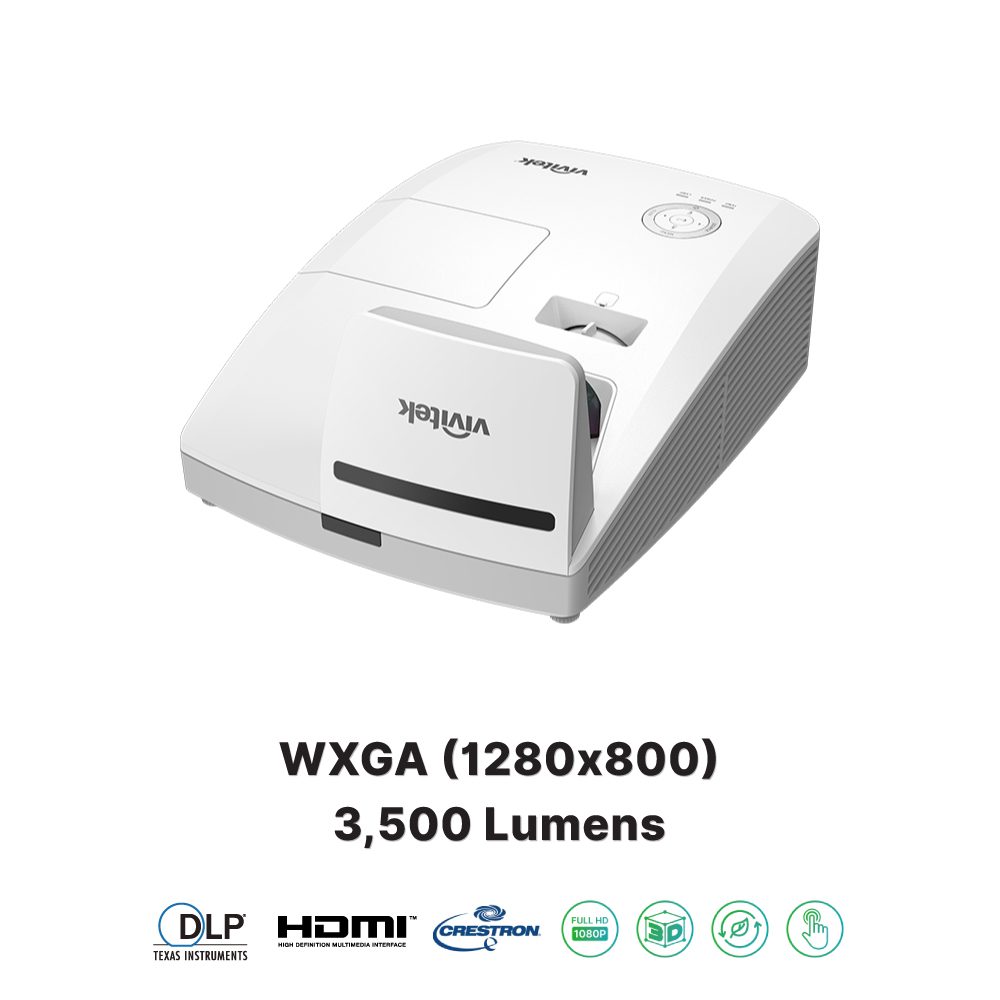

The DW770-USTi is an ultra short throw projector with 4K compatible. The Ultra short throw lens can make up to a 100” large image from a short distance. With 3,500 lumens of brightness, 5,000:1 contrast ratio and WXGA resolution ensure clear, stunning and bright projection. The UST projector support Crestron® RoomView™ for network monitoring and management capabilities This projector is an ideal projector solution for education environments.
Key Features
Large Image in Small Space
The DW770-UST with its 0.35:1 ultra-short throw design can project up to a 100-inch large and clear image from a short distance to save the space.

Bright Images in Any Environment
Packed with 3,500 lumens of brightness and a high contrast ratio 5,000: 1, this series provides sharp and bight images in any environment with ambient light.

4K Signal Compatible
The DW770-UST is a projector capable to accept native 4K signals compatible With built-in HDMI 2.0, supports playback of 4K videos contents and can easily have a detailed and vivid content experience.

Long Lamp Life
With high-efficiency and energy-saving lamp, the projector has a long life span of up to 12,000 hours in Eco mode to reduce lamp replacement times.

Support Crestron RoomView
The DW770-UST support Crestron® RoomView™ network monitoring and management control system, which can remotely manage and monitor multiple projectors and set schedules.

| Category | Specification |
|---|---|
| Projection System | 1-Chip DLP™ 0.65 inch |
| Resolution | WXGA (1280 x 800) |
| Light Source | UHP Lamp |
| Optics | |
| Brightness | 3,500 lm |
| Brightness Uniformity | 80% |
| Contrast Ratio | 5,000:1 (Full On/Off) |
| Light Source Life | 6,000 hrs(Normal) 12,000 hrs (Eco) |
| Lens Type | Fixed |
| Zoom Ratio | N/A |
| Lens Throw Ratio | 0.35 : 1 |
| Lens Shift – Horizontal (Full Image Width) | N/A |
| Offset (Full Image Width) | +118.3% ~ +121.7% |
| Geometry Adjustment | |
| Keystone Correction | Yes (V) |
| Four Corner Adjustment | N/A |

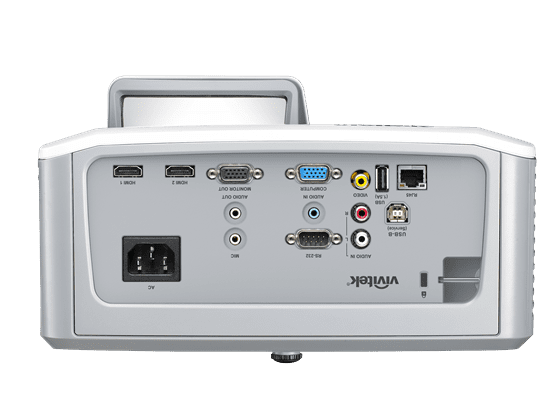

| I/O Terminal | |
| HDMI | 2.0 x2 |
| D-Sub | In x2 / Out x1 |
| RS-232 | In x1 |
| Speaker | 10W x2 |
| USB | mini-B (Service) x1 |
| Audio | Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1 |
| System | |
| Power Supply | 2AC 100-240V 50/60Hz |
| Power Consumption ±5% | 290W (Normal) / 210W (Eco) |
| Standby Power | < 0.5W) |
| Acoustic Noise ±5% | Normal 32dB / Eco 29dB |
| Dimension ±2% | 287.7 x 374.5 x 122.6 mm |
| Weight ±1kg | 5 kg |
| 3D Display | Active / Passive |
| 24×7 Operation | N/A |
| Operation Oreinetation | Up & Down (lamp life not gurantee) |
| Operation Environment | Temp. 5~40˚C / Humidity10~85% |
| Storage Environment | Temp. -10~60˚C / Humidity 5~95% |
